Multimeter Limit 500

Limit 500 Multimeter

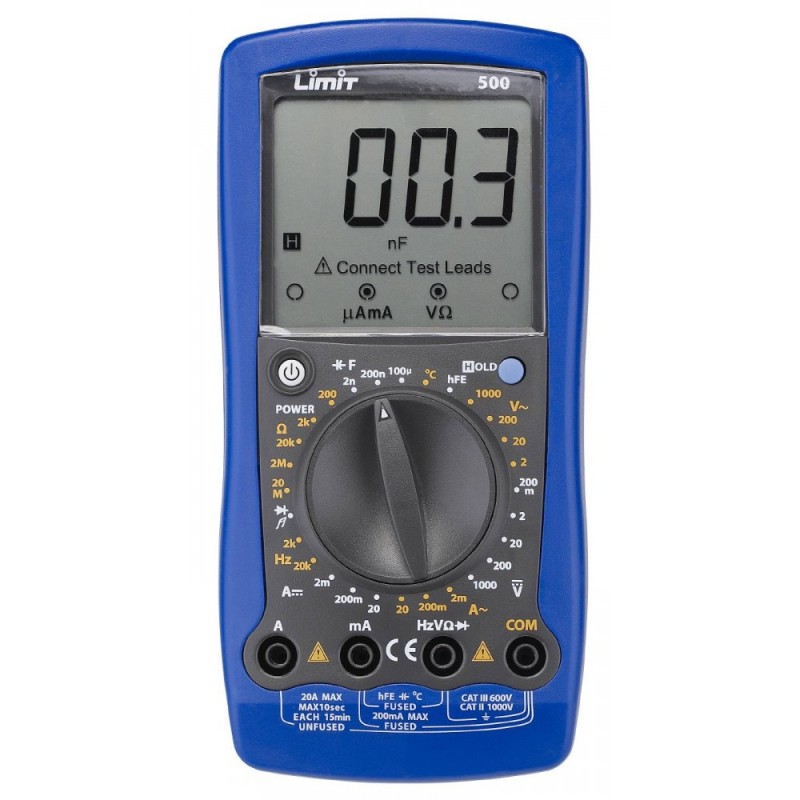

Digital multimeter with large display showing correct cable connection and selected measurement range. For measuring DC/AC voltage, DC/AC current, resistance, capacitance, frequency and temperature. Also includes diode, transistor and continuity tester with buzzer, data hold function and low battery warning. Automatic shut-off.
Supplied with test leads, multi-contact, K-type temperature sensor, max. 260°C, batteries and operating instructions. Rubber cover and foldable table support.
Scale length - 1999. Insulation - CAT II 1000 V / CAT III 600 V according to IEC 61010. Fuse up to max. 200mA.
Specification
Battery size
6F22 (9 V) Alkaline
Battery quantity
1.0 pcs
Frequency measurement range, max.
20 kHz
Frequency measurement range, min.
2 Hz
Frequency error
±(1.5% +5)
Frequency resolution
1 Hz
Display with backlight
Yes
ETIM
EC000069
Manufacturer's marking
500 Limit Sweden
Length
179 mm
Voltage measurement range (AC), max.
1000 V
Voltage measurement range (AC), min.
2 V
Voltage measurement range (DC), max.
1000 V
Voltage error (DC)
±(0.5% +1)
Voltage resolution (AC)
1 mV
Voltage resolution (DC)
0.1 mV
Width
88 mm
Safety classification
[, CAT II 1000 V, CAT III 600 V]
Current measurement range (AC), max.
10 A
Current measurement range (DC), max.
10 A
Current measurement range (DC), min.
2 A
Current error (AC)
±(1% +3)
Current error (DC)
±(0.8% +1)
Current resolution (AC)
1 µA
Current resolution (DC)
0.01 µA
Thickness
39 mm
Weight
380.0 g
Capacitance measurement range, max.
100.0 µF
Capacitance measurement range, min.
2.0 µF
Capacitance error
±(4% +3)
Capacitance resolution
1.0 nF
Temperature measurement range, max.
1000.0 °C
Temperature measurement range, min.
-40.0 °C
Temperature error
±(1% +3)
Temperature resolution
1 °C
Resistance measurement range, max.
20 MΩ
Resistance measurement range, min.
200.0 Ω
Resistance resolution
0.1 Ω
