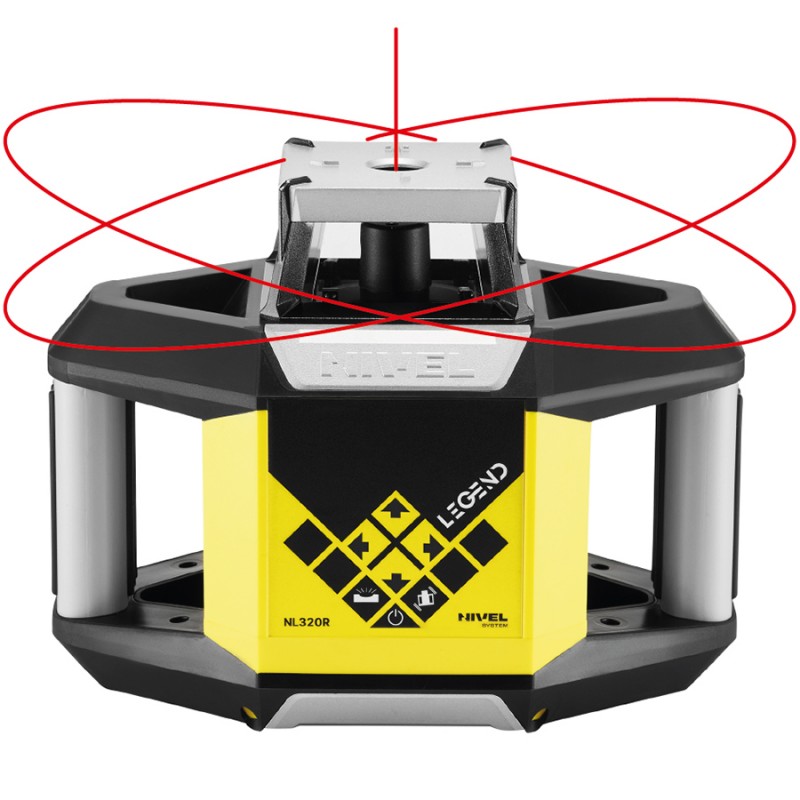

Laser level NL320R + legs + ruler + receiver RD300

Level System
NL320R
The rotary laser is a versatile tool for both indoor and outdoor use. The red laser beam makes it ideal for use in difficult conditions. It determines horizontal and inclined planes, and the vertical beam allows you to determine vertical or right angles. Laser
NL320R
is an ideal choice for general construction work, ensuring high durability and resistance to atmospheric conditions.
Laser
Class 2, (635 nm)
Laser color
red
Accuracy
1mm/10m
Working distance
500 m
Automatic reclining
± 5°
Slope
± 10% (X axis, Y axis), manual
Rotation speed
interchangeable, max. 600 rpm
Power supply
3.7V (Li-ion, 8000mAh)
Working hours
about 50 hours
Resistance
IP54 Operating temperature
-20ºC +50ºC
Measurements
206 x 206 x 211 mm
Weight
3 kg
NL320R - laser level
1pc.
RD300 - laser sensor with NL-BR 300 holder
1pc.
AKU CL 8000 - rechargeable Li-ion battery
1pc.
CH-CL USB C - charger
1pc.
User manual
1pc.
Transport case
1pc.
Tripod -1pc
Ruler-1pc
NL320R DIGITAL is quick and easy to use, plug and play
Easy and fast measurements
The NL320R has an automatic leveling function, after switching on it levels itself and is ready for work. The generated red laser beam is very visible, displayed on the wall as a reference line for horizontal work. Working with a sensor and a laser meter, we get an accurate leveling set that can be operated by one person
Universal use
The equipment allows you to work with a horizontal beam. The plane can be tilted in one or two directions, making it ideal for tasks such as pouring floors, leveling surfaces before laying paving slabs, sports fields or roads. The laser level function allows you to precisely position the laser when performing perpendicular work and transferring points.
Accurate and reliable equipment
The level has an electronic compensator that eliminates vibrations and ensures the exact level of the laser plane. The electronic compensator, compared to the magnetic one, is much more accurate where the surface may vibrate due to the operation of heavy equipment. Therefore, thanks to the NL320R, we get reliable and accurate measurements. The device is dust and water resistant - resistance class IP54. In addition, the rotary socket is covered with a glass housing, and the laser housing has rubber caps to protect against impacts.
Control comfort
The NL320R is easy to operate thanks to its intuitive control panel. Functions such as entering gradients are carried out manually. The laser is powered by an 8000 mAh lithium-ion battery. The battery has no memory effect, which means it will not be damaged by overcharging. The device can also be powered directly from the mains, and its compact housing makes it convenient and easy to transport.
The NL320R is very simple and quick to use. Simply place it on a tripod or other stable surface and turn on the power. The device automatically levels itself. The rotating laser socket, rotating around its axis, creates a perfectly leveled laser plane that can cover an area of more than 19 hectares. Height difference measurements are performed by one person using a laser sensor, the readings of which are visible even in sunlight. When working inside a building, it is often not necessary to use the sensor, since the laser beam is visible.
Territory leveling, road and parking lot construction, paving works
The plane generated by the laser is the reference point from which the height coordinates are determined with high, millimeter accuracy. The plane can be tilted in one or two directions, and the slopes are set manually. The laser head has a sight for alignment with the slope axis, which allows for precise adjustment of the device.
Correct laser alignment is facilitated by the verticality function, which generates a downward-pointing laser dot, ensuring the precise position of the level over the required point. There is no need to recalculate height coordinates, add or subtract - just tilt the planes according to the project.
The NL320R laser has an over-height signal function, which is important in the case of unstable ground, where soil subsidence and grounding of the permanent line may occur. This makes the equipment suitable for use even in the most difficult conditions.
Building a house with a laser NL320R
The NL320R is indispensable in various stages of construction. We use the NL320R in the initial stages of site construction, removing soil layers, laying foundations and performing masonry work. The laser device will help determine the ideal horizon and slopes.
Accuracy
The NL320R laser ensures precise leveling thanks to an electronic compensator that eliminates vibrations. Compared to magnetic compensators, the electronic compensator ensures significantly higher accuracy, especially in difficult construction conditions.
The body of the laser device is dust and water resistant (IP54 class), and the rotary socket is protected by a glass housing. Rubber caps protect the device from impacts.
Usage
leveling the territory
– leveling
masonry work
– interior and exterior (foundations, walls, stairs, floor leveling, formwork)
paving works
– installation of parking lots, driveways, terraces
installation and finishing works
– installation of wooden, aluminum structures, suspended ceilings, tiling
installation work
– setting up wiring lines, moving points
machine control systems
plumbing and sewerage works
– control of excavation depth and laid pipeline (including with slope)
horticulture and agriculture
NL320R is equipped with Nivel System RD300 DIGITAL - a digital sensor with height difference display
