Cordless cross line level 3x3D set (green laser) 20V 2.0Ah LI-ION (XCUBE box)

The wireless laser level "WORCRAFT CLL-S20Li 3D" is an excellent assistant in constructing planes, equipped with 12 green spectrum laser projections.
Two 360° vertical projections and a 360° horizontal projection allow you to perform various tasks - from designing interior partitions and doors to installing plaster beacons and laying a leveling layer.
The main operating distance of the level is 30 m, and the pulse mode together with the repeater allows you to increase the effective working distance to 50 m even when used outdoors.
The sturdy body, made of high-quality plastic, is characterized by improved ergonomics and stability. The body size is 445 x 320 x 170 mm.
Can be combined with the XCUBE system.
Works with a trap (23534)
The 360° horizontal plane projection located on the top of the device allows you to accurately mark the horizon when installing stretch and suspended ceilings, as well as when performing installation work at height.
Two vertical planes perpendicular to each other at an angle of 360° provide convenience when designing and installing internal partitions and openings, and also allow you to control the accuracy of internal and external corners in the room. In addition, you can set the zenith and nadir points, which allows you to move the marking from the floor to the ceiling and back.
The pendulum lock allows you to project lines at any angle, turning the device into a convenient laser pointer, and also protects the mechanism during transportation.
The pulse mode allows you to expand the operating range of the device when used with a repeater (laser signal receiver).
The automatic leveling system corrects the horizon and vertical within 5 seconds, if the initial deviation does not exceed ±4°.
If the installation angle is exceeded by more than ±4°, a flashing signal is activated.
Ease of use is ensured by an intuitive interface that allows you to quickly set the device for work.
The bright green laser is optimally visible to the human eye, making work with projections convenient and effective at a distance of up to 30 m.
Two built-in sockets with 1/4" and 5/8" threads allow the device to be attach to various holders, such as a tripod, magnetic holder or microlift, which expands its application possibilities.
The emitting windows are additionally reinforced with high-strength metal, which ensures durability and protects the optics from damage.
High-quality laser module and optics.
Ergonomic and compact rubber housing made of impact-resistant ABS plastic.
Reinforced metal threaded mounting block for a tripod or multi-function holder.
High degree of protection against dust and moisture (IP54).

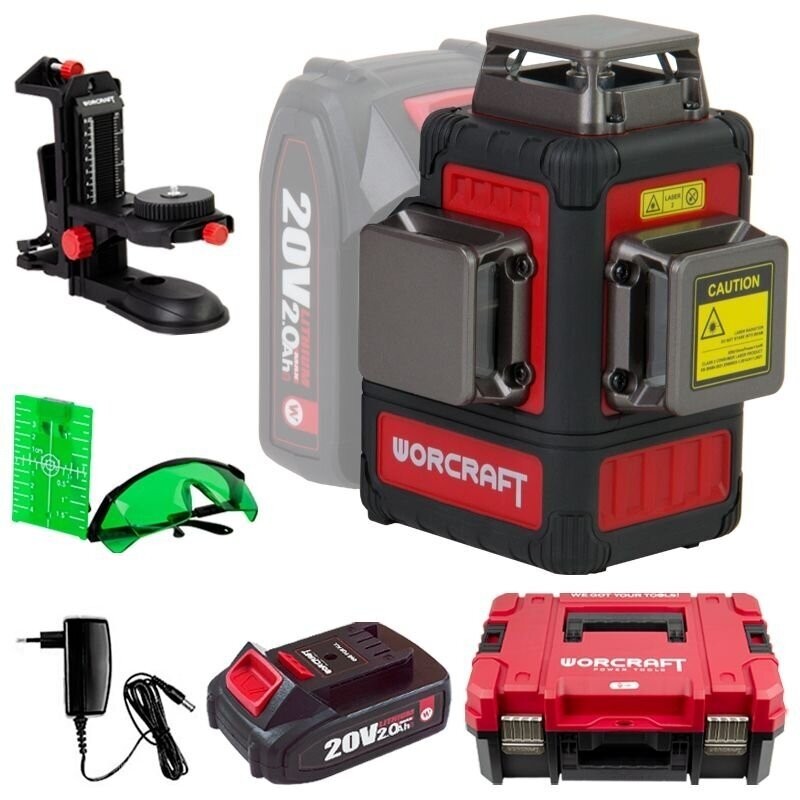

The "WORCRAFT XCUBE026" set includes:
Cordless 3D laser level CLL-S20Li; Charger CLC-20V-1.5; Rechargeable battery CLB-20V-2.0H; Protective glasses reduce eye strain and ensure safety during work. Sight with magnetic mount. Multifunctional holder with many settings and adjustments. Durable body made of high-quality plastic, featuring improved ergonomics and durability. Case dimensions – 445 x 320 x 170 mm.
- 12 beams (360° horizontal plane projection + 2x360° perpendicular vertical projections)
- Laser beam color – green (wavelength – 520 nm)
- Operating distance – 30 m
- Self-leveling ± 4°
- Self-leveling time – 4–5 s
- Tripod holes – 1/4 inch and 5/8 inch
- IP54 rubberized ABS plastic housing with metal elements
- Projection deviation – up to ±0.3 mm/m
- Battery + charger + case + accessories
Equipment:
Wireless 3D laser level WORCRAFT CLL-S20Li; clamp/magnetic stand; laser sight with markings; glasses to increase the visibility of the laser beam; rechargeable battery CLB-20V-2.0H; charger CLC-20V-1.5; case; packaging box;
