Technical data
Laser diode 635 Nm
, < 1 mW
Measuring limits
0.08 – 150.00
Laser class
2
Typical measurement accuracy
± 1.5 mm
Tilt measurement range
0 - 360° (4 x 90°)
Measuring accuracy (typical)
+/- 0.2°
Typical measurement time
< 0.5 s
Max. measuring time
4 s
Power supply
1 3.6 V lithium-ion battery (3120 mAh)
Automatic shutdown
5 min
Weight approx.
0.21 kg
Measurement values
m/cm/mm/ft/inch/ft-inch
Number of values stored in memory
50
Protection against dust and moisture
IP 54
Mount thread
1/4"
Digital viewfinder
Integrated
Data transmission
Bluetooth™ Smart
The smart solution for measuring and documenting the environment even in the field
Digital viewfinder with zoom function ensures precision when measuring long distances outdoors and in difficult environments
The high-contrast IPS color display offers optimal resolution
Remote control speeds up measurements, and the Measuring Master app ensures easy documentation of results

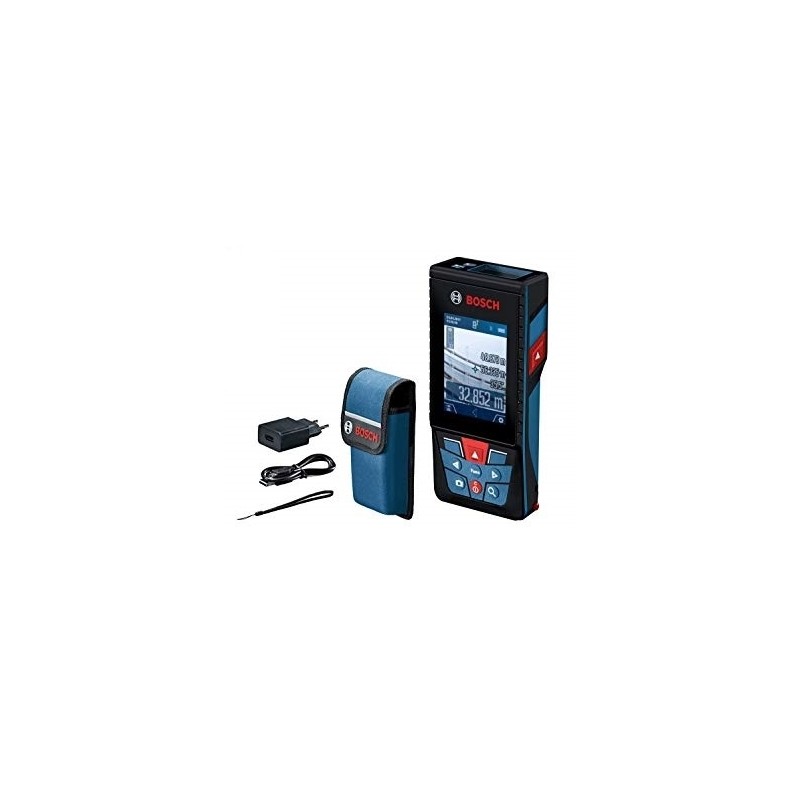

The GLM 120 C Professional laser measurer is ideal for documenting the environment and taking precise measurements even when working outdoors. The digital viewfinder allows for visual aiming when working outdoors at distances of up to 120 meters. The 2.8-inch color display with protective shield ensures optimal clarity and robustness. Fast data acquisition and documentation is ensured by using a USB cable with micro connector and the Measuring Master app.
This laser measurer is the perfect choice for measuring long distances in difficult environments and in poor visibility.
The GLM 120 C Professional features a user-friendly human-machine interface (HMI) with a click wheel for easy access to all functions and a useful help option with detailed images, making all functions easy to understand.
