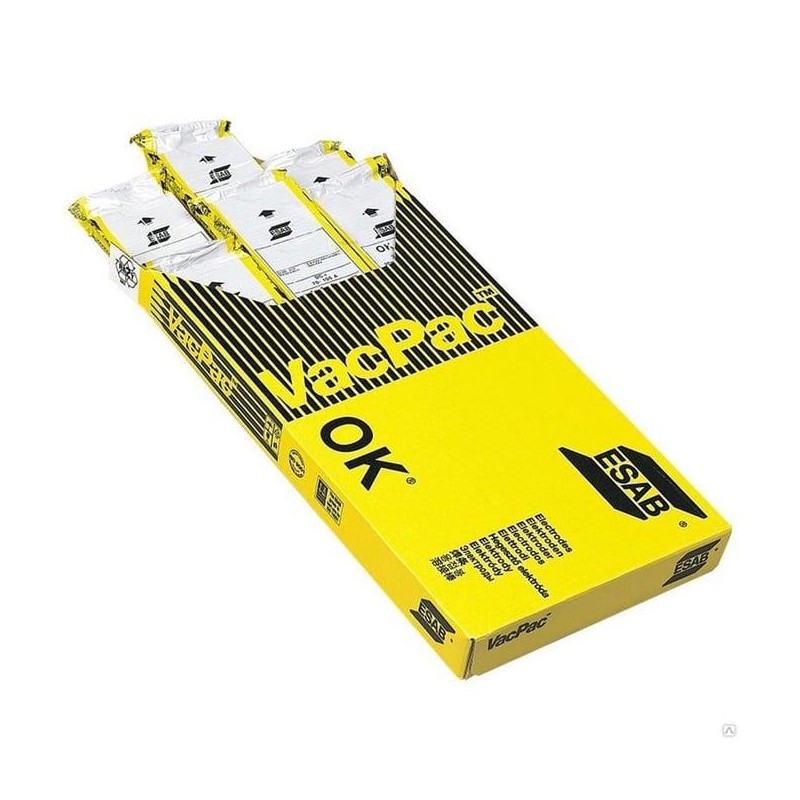

Stainless steel electrodes 3.2mm 1.7kg ESAB OK61.30

Diameter (Ø):
3.2 mm
Length:
350 mm
Package weight:
1.7 kg
Package:
Vacuum
Current:
70-130 A
Voltage:
31 V
Soldering efficiency (kg of weld metal per kilogram of electrodes):
0.60 kg/kg
Number of electrodes to weld 1 kg of metal:
49 kg
Fusing time per electrode at 90% I max.:
54 sec.
Soldering efficiency (kg of weld metal per hour of arc burning):
1.4 kg/h
Welding current:
DC+, AC
Ferrite content:
FN 3-10
Alloy type:
Austenitic CrNi
Electrode filler:
Rutile acid
Classifications:
EN ISO 3581-A: E 19 9 L R 1 2
SFA/AWS A5.4: E308L-17
CSA W48: E308L-17
Werkstoffnummer : 1.4316
Approvals:
ABS Stainless
CE EN 13479
CWB CSA W48: E308L-17
DB 30.039.02
DNV-GL VL 308 L
NAKS/HAKC 2.0-4.0 mm
Seproz UNA 272580
VdTÜV 00792
Manufacturer:
ESAB
